First in the country! Hundred-ton pure electric remanufacturing mining truck, efficient operation for more than 1 year!

Congrats! The first "pure electric remanufacturing" project based on pure electrochemical technology research and development of 100-ton fuel oil mining card in Grand Times, after successfully completing the program design, sample vehicle production and type test, it was officially put into use in a multi-metal mine in July 2022. Up to now, the country's first pure electric remanufacturing mining card HAT-R100E has been running stably and efficiently for more than a year!

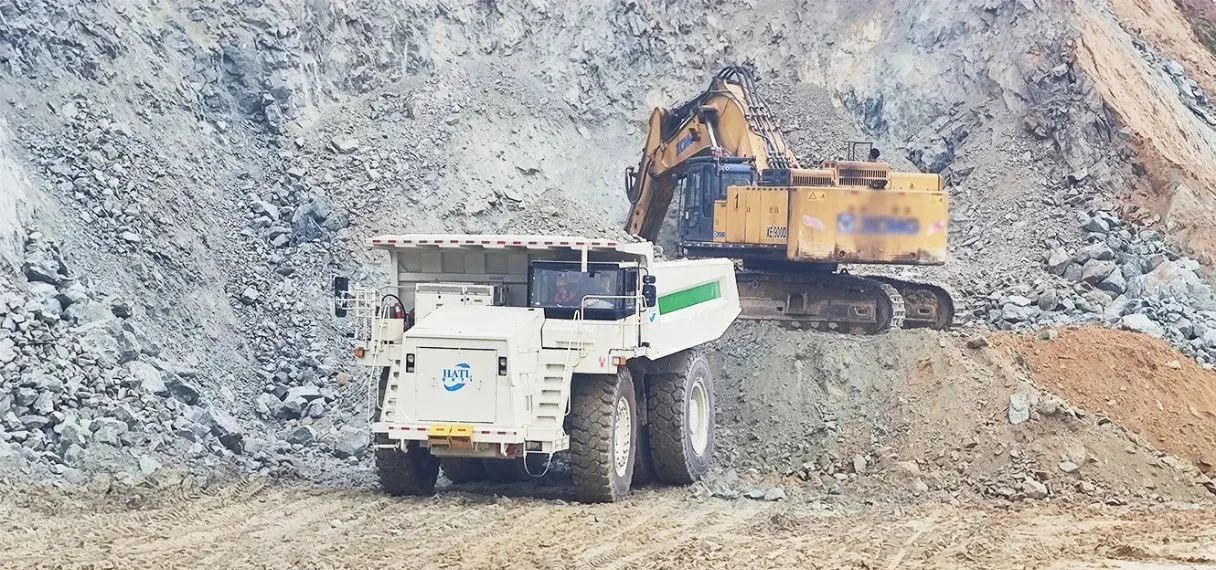

▲HAT-R100E pure electric remanufacturing mining card "low carbon operation"

Under the background of "double carbon" goal, we "dare first"

The successful transformation of the first HAT-R100E pure electric remanufacturing mining card has been completed and stable operation so far, marking the feasibility of transforming the traditional fuel oil mining card into a pure electric mining card in the grand era has been fully verified in the design scheme and technical route. It provides a new solution and valuable experience to solve the "stuck neck" problem of large old fuel oil mining card consumption and high maintenance cost of key components, and also opens up a new idea for the construction of green and intelligent mines.

Grand Era was born in the context of the national "double carbon" goal, actively practicing the "double carbon" strategy, pioneering and innovative, daring to practice, is the first domestic enterprise to study the off-highway fuel mining card "pure electricity remanufacturing" project. As early as the end of 2020, shortly after the company was established, the 100-ton "pure electricity remanufacturing" project based on the high voltage platform was established as the company's first research and development project, and after several investigations and demonstrations by the technical team, the project was officially established and started at the beginning of the next year.

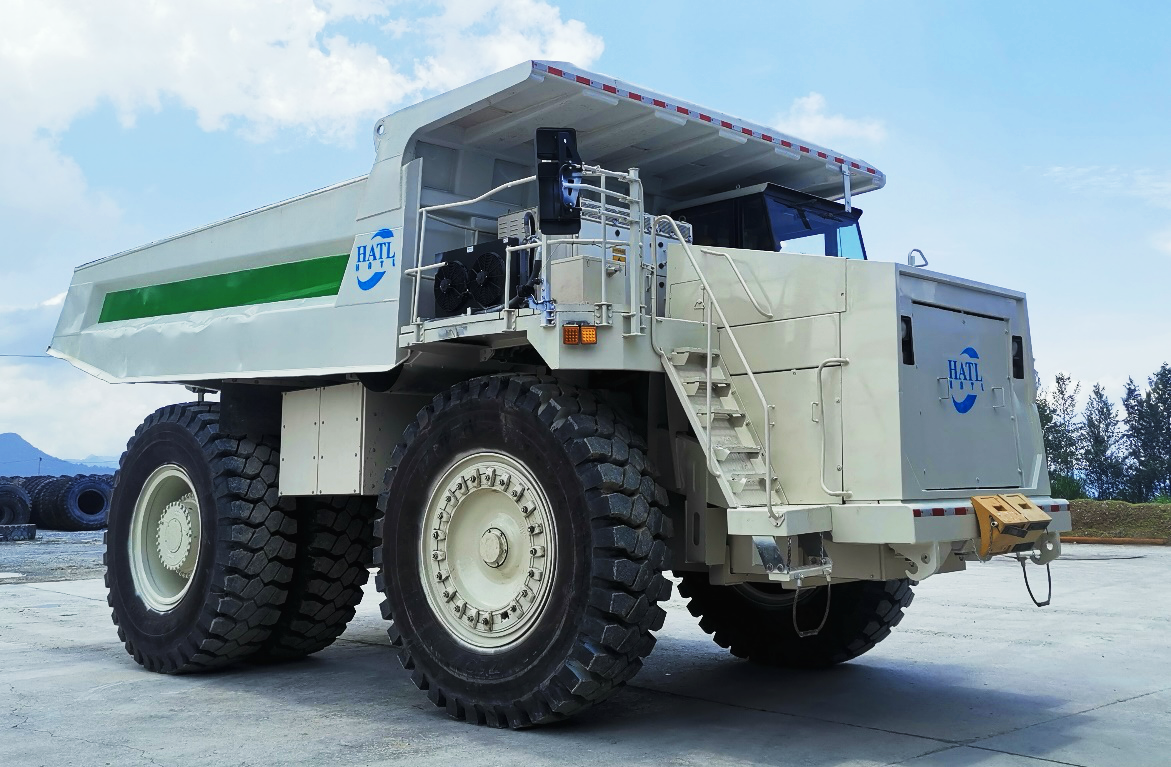

▲ The first pure electric remanufacturing mining card HAT-R100E after the transformation

Give a new energy "heart" to the traditional fuel mining card

Grand Times uphold the design concept of high technical standards and high safety requirements, by changing the transportation energy of the traditional fuel mining card, the fuel power is replaced by pure electric power, and it is equipped with a set of new energy "heart", and the green mining tool with higher performance, lower energy consumption, energy saving and environmental protection, and the service life of more than 10 years is rebuilt.

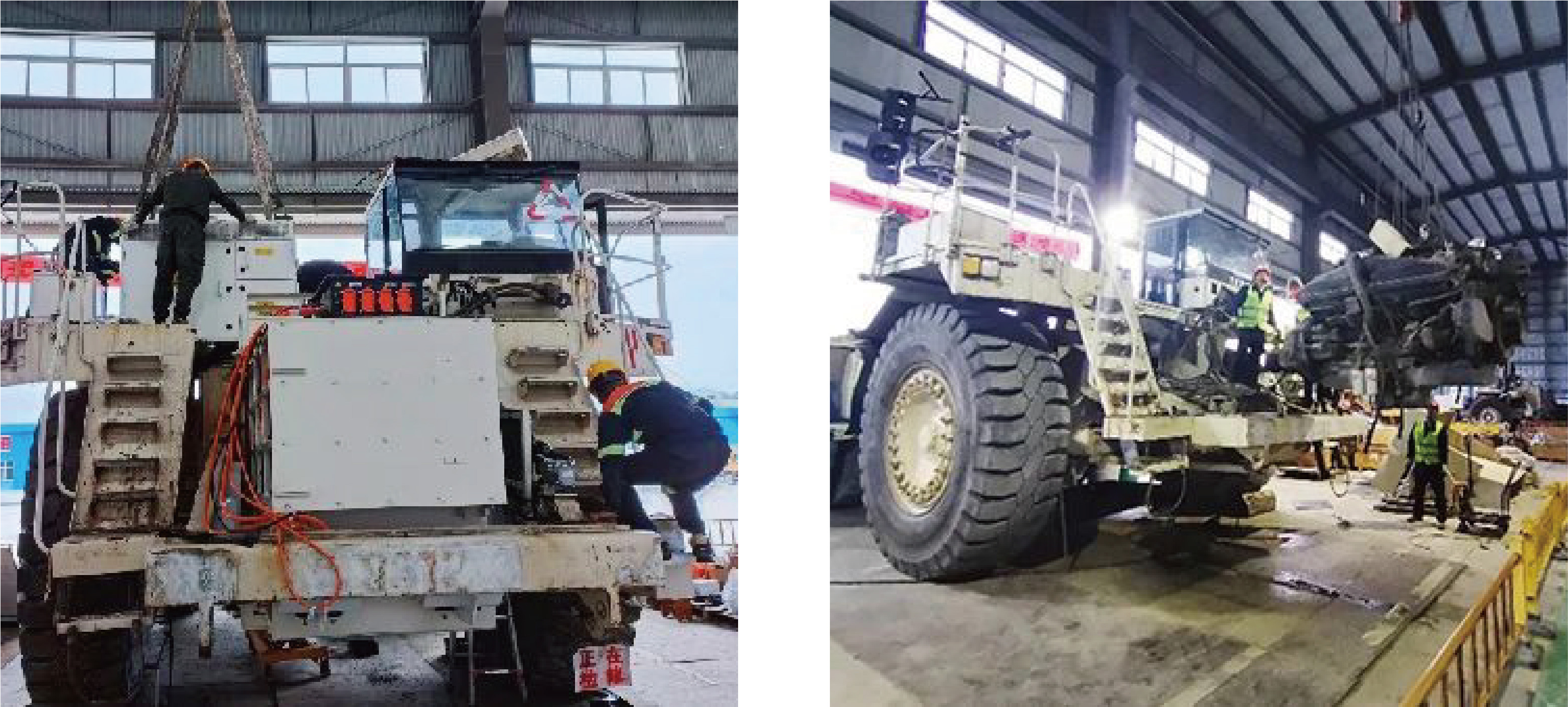

▲ The first one based on a 100-ton fuel oil mining card pure electrochemical technology transformation

This project is based on the pure electrochemical technology research and development of a 100-ton fuel oil mining card, upgrading the original traditional "engine + gearbox + transmission shaft" to "power battery + traction motor + transmission shaft" to achieve pure electric drive of the whole vehicle, and realizing energy recovery through electric braking when heavy duty downhill, achieving the purpose of energy saving and emission reduction, cost reduction and efficiency. At the same time to solve the domestic large tonnage mining card supporting engine, gearbox "stuck neck" problem.

The HAT-R100E pure electric remanufacturing mining card after the 100-ton class is given the "heart" of new energy has been significantly improved in terms of safety, economy, comfort, environmental protection and intelligence level.

Achieve both green and low-carbon transport and economy

It can save nearly 2 million yuan a year and reduce carbon emissions by about 890 tons

Compared with the original fuel vehicle, the annual working time of the reformed HAT-R100E pure electric remanufacturing mining card is more than 5000 hours, including the charging time, the attendance rate is the same as that of the same class fuel vehicle, and the integrity rate is higher than that of the original vehicle. The energy consumption and maintenance cost of the vehicle are lower, and the green energy saving and emission reduction of the mine transportation link are realized while meeting the transportation efficiency and efficiency.

HAT-R100E vehicle power performance is 10% higher than before the transformation, energy consumption is only 10%-15% of the transformation, and each vehicle can reduce carbon dioxide emissions of about 890 tons per year.

Taking a multi-metal mine as an example, the energy consumption cost of a single 100-ton HAT-R100E after remanufacturing is about 0.18 yuan/square kilometer, and the energy consumption cost of HAT-R100E is about 12.7% of that before the transformation. It is understood that the annual volume of 100-ton fuel vehicles in the mine is about 1.5 to 1.6 million square kilometers, and the annual energy consumption cost is about 2.2 million yuan; Since the pure tram needs to be charged, the production efficiency is calculated by 90% of the fuel vehicle, and the bicycle can save about 1.73 million yuan of energy consumption for the mine every year.

The annual spare parts cost of 100-ton fuel vehicle is about 800,000 yuan, and the three electric parts are basically maintenance-free parts after remanufacturing, effectively reducing the spare parts consumption, HAT-R100E spare parts cost is about 70% of the transformation before, and the annual spare parts cost can save about 300,000 yuan.

Combined energy consumption costs and spare parts costs, each car can save customers about 2 million yuan per year.

▲HAT-R100E pure electric remanufacturing mining card "hard to move bricks"

Customer feedback：

Feedback from mine project leader:

① The current oil price volatility is increased, the monthly fuel cost is higher, and the energy consumption cost of the vehicle operation after remanufacturing is low, which can save about 160,000 yuan per month, and reduce the carbon dioxide emissions generated by the fuel vehicle, and can achieve the carbon emission target.

② Traditional fuel drive to pure electric drive, no engine and gearbox, no need to regularly replace the oil and transmission oil, and increase the electric braking mode, vehicle braking performance has been improved, reduce brake pad loss, single vehicle maintenance cost than before the transformation reduced by more than 30%, effectively reduce mine production costs.

③The reliability of the vehicle is high, the failure rate of the new parts is very small, and the mobility rate of the vehicle is 95%.

Driver feedback:

After remanufacturing, the vehicle is easy to operate, easy to drive, less noise in the cab, and more comfortable working environment.

At present, in addition to the 100-ton HAT-R100E pure electric remanufacturing mining card, Grand Times has also completed the 60-ton HAT-R60E/EA pure electric remanufacturing mining card and the 12-ton HAT-W12E pure electric remanufacturing loader. Next, the company will continue to steadily promote the "pure electricity remanufacturing" project, so that more old mining equipment will become "waste" to "treasure", and contribute to the high-quality development of green mine construction.
